Epson TM-T82: Windows Driver vs Raw ESC/POS Printing

There are four legitimate ways to get text out of an Epson TM-T82, and teams usually pick one by accident — whichever appeared first in a search result — then live with the consequences for years. The consequences are real: a difference of several seconds per sale, whether the cash drawer can open at all, and whether a failed print is something your code can see.

This is the comparison I wish I had at the start, followed by the code for the two paths that matter most in practice.

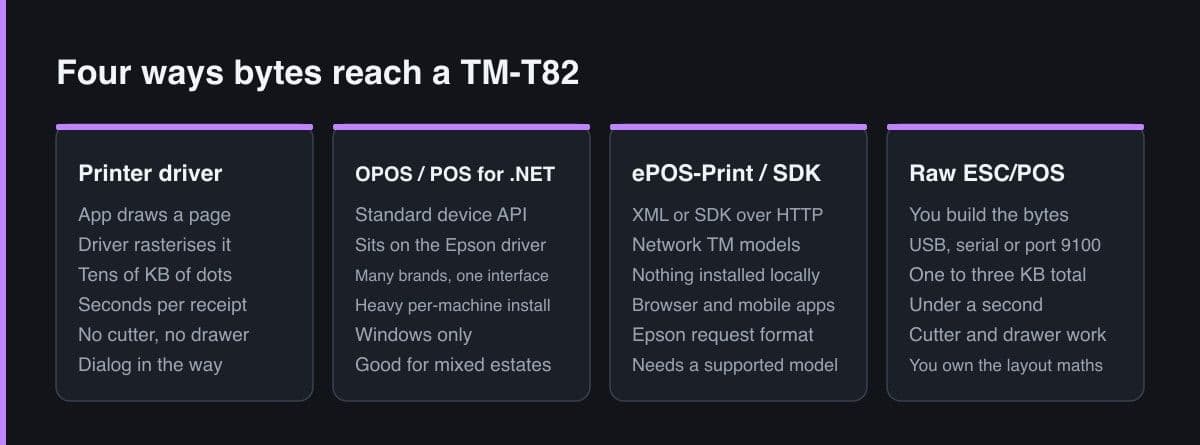

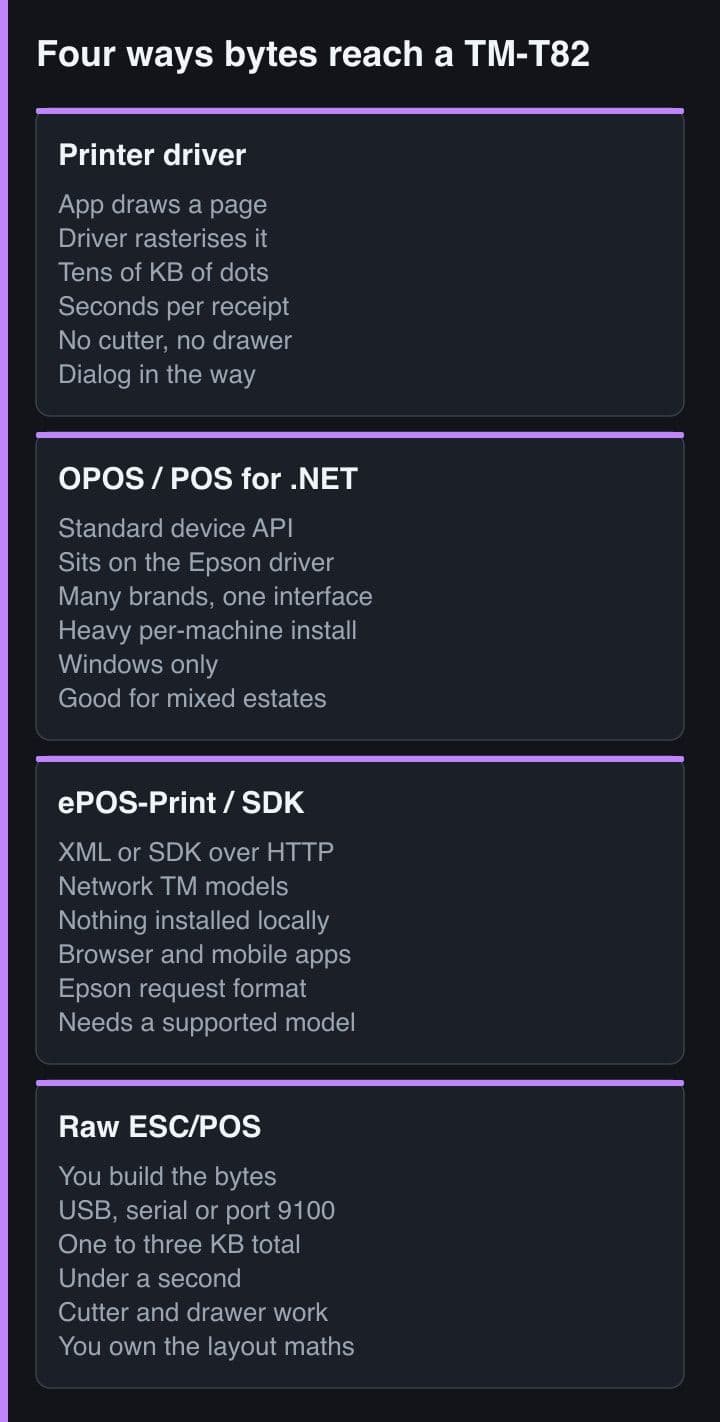

The four paths, side by side

Every option below ends with the same ESC/POS bytes reaching the print head. What differs is who generates them, how many layers sit in between, and how much of the printer's behaviour you can reach.

The honest summary is that the driver optimises for generality and raw optimises for a receipt. A point-of-sale system is not a general printing problem, which is why nearly every POS product ends up on the bottom row.

What the driver actually does to your receipt

Understanding the cost requires knowing what happens between your document and the paper. A GDI-class driver treats the receipt as a page image.

• It builds a bitmap the full width of the printable area and as tall as your content, at 203 dots per inch.
• It sends that bitmap as raster data, which is far more bytes than the equivalent text: a line of 48 characters is 48 bytes as text and thousands of bytes as dots.
• It queues the job in the spooler, which adds latency you cannot control and a failure surface — stuck jobs, offline queues — that your application cannot see.
• It gives you no place to put a drawer pulse or a cut, because those are commands, and a page image has no commands in it.

None of that is a defect. It is exactly right for printing an invoice on A4. It is simply the wrong shape for a device whose entire job is short bursts of monospaced text and two or three control commands.

Raw printing without giving up the print queue

There is a middle path many teams miss: you can send raw ESC/POS through the operating system's print queue instead of bypassing it. On Windows this is the RAW datatype, on Linux it is the raw option to lp. You keep queue management, sharing and permissions, but the spooler passes your bytes through untouched instead of rendering anything.

# Windows: hand raw bytes to the spooler with the RAW datatype.
# The queue still owns the port, so sharing and permissions keep working.
Add-Type -AssemblyName System.Drawing
$job = [System.IO.File]::ReadAllBytes("C:\pos\receipt.bin")
# RawPrinterHelper.SendBytesToPrinter uses OpenPrinter + StartDocPrinter
# with pDatatype = "RAW", then WritePrinter. Nothing renders the page.

# Linux / CUPS: the same idea, one line.
lp -d TM-T82 -o raw receipt.bin

# No queue at all: talk to the device node.
cat receipt.bin > /dev/usb/lp0

This is usually the right first migration. It removes the rasterisation cost and unlocks drawer and cut commands, without asking a shop's IT arrangement to change at all. Only move to a direct device or socket connection when you need the last hundred milliseconds or you are printing from a service with no desktop session.

Direct to the device, for when latency matters

For a purpose-built POS, the shortest path is to open the transport yourself. Over USB or serial that is a device node; over Ethernet it is a TCP connection to the printer's raw print port.

// Node: raw TCP to an Ethernet TM printer. One socket, one receipt, close.
import { Socket } from "node:net";

const PRINTER_PORT = 9100;          // the raw print port on TM Ethernet models
const CONNECT_TIMEOUT_MS = 3000;

export function printRaw(host: string, payload: Buffer): Promise<void> {
  return new Promise((resolve, reject) => {
    const socket = new Socket();
    socket.setTimeout(CONNECT_TIMEOUT_MS);
    socket.once("timeout", () => socket.destroy(new Error("printer timeout")));
    socket.once("error", reject);
    socket.connect(PRINTER_PORT, host, () => {
      // end() flushes then FINs — the printer treats the close as end of job.
      socket.end(payload, () => resolve());
    });
  });
}

Two details make the difference between a working implementation and a flaky one. Open the connection per receipt and close it — the close is what many TM firmware builds treat as end of job. And never keep a socket open across sales hoping to save the handshake: a half-open connection to a printer that was power-cycled will accept writes and print nothing.

Choosing, in three questions

The decision is almost mechanical once you answer these.

• Does the application need the cash drawer, the cutter or paper status? If yes, the plain driver path is already out.
• Does the printing code run on a machine with no logged-in desktop — a server, a container, a kiosk service? If yes, prefer raw to a socket, because the spooler assumes a session.
• Do non-developers ever need to print to this device from other software? If yes, keep an operating-system queue, and use the raw datatype through it rather than removing it.

In my own POS work the answer has been the same every time: raw bytes, through a queue where a shop already had one, straight to the port where they did not.

The migration nobody regrets

If you inherit a system that prints receipts through a driver, the sequence that works is: generate the same receipt as ESC/POS bytes alongside the existing path, dump both to files, compare them by eye on paper, then flip a feature flag per shop. Nothing in the sale flow changes, and you can roll back one shop without touching the others.

The measurable outcome is usually the same: receipts drop from several seconds to under one, the drawer starts opening from software, and support calls about stuck print queues disappear because there is no longer a queue to get stuck.

The Windows driver is not wrong, it is general. Raw ESC/POS is not clever, it is specific. A point-of-sale application is one of the few places where specificity clearly wins, and the cost of that specificity is one afternoon spent learning a small command language you will then use for years.
